LED Aluminum Bar Light LED Rigid Strip Light
LED rigid strip light, aluminum bar lightNormal Brightness: 10*12mil chips, SMD5050 is 12-13 Lm/LED; SMD3528 is 5Lm/LED; High Brightness: 10*16mil chips, SMD5050 is 16-18 Lm/LED; SMD3528 is 7.5Lm/LED. Colour Temperature will again base customer`s requirement, 2000K-10000K are available.Application:I......
Send Inquiry
Product Description

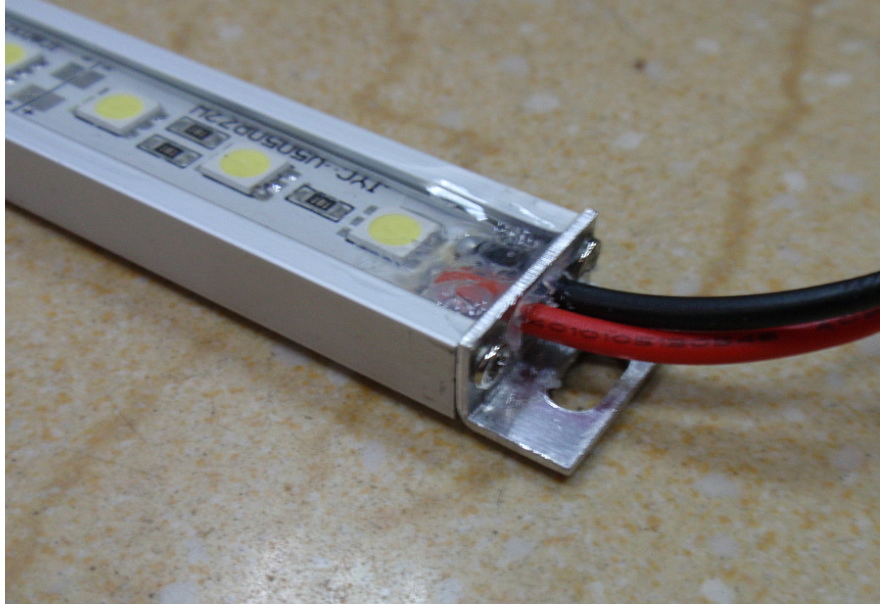

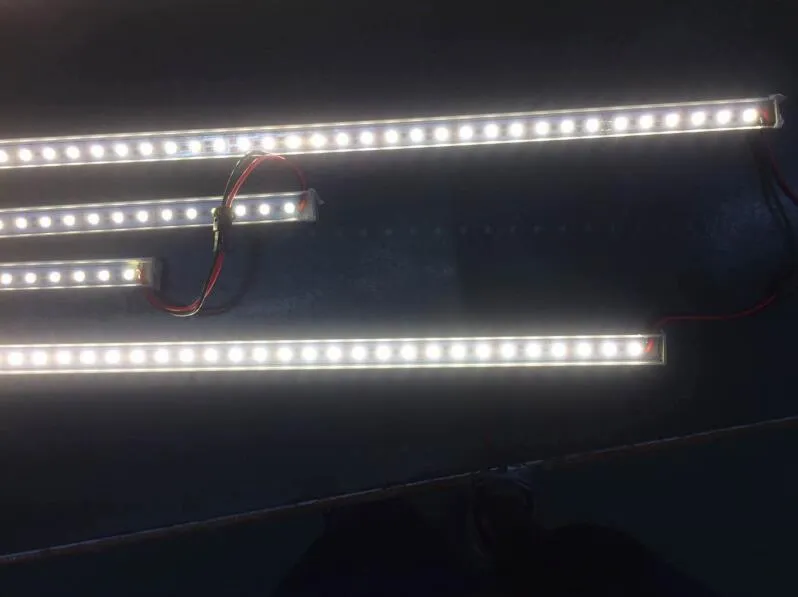

LED rigid strip light, aluminum bar light
Normal Brightness: 10*12mil chips, SMD5050 is 12-13 Lm/LED; SMD3528 is 5Lm/LED; High Brightness: 10*16mil chips, SMD5050 is 16-18 Lm/LED; SMD3528 is 7.5Lm/LED. Colour Temperature will again base customer`s requirement, 2000K-10000K are available.
Application:

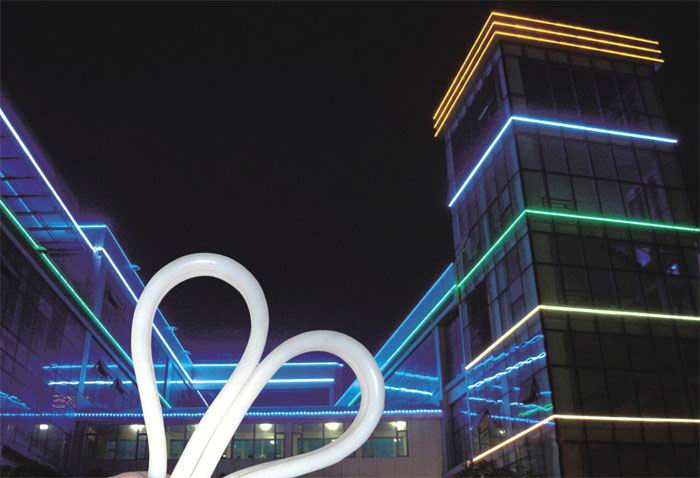

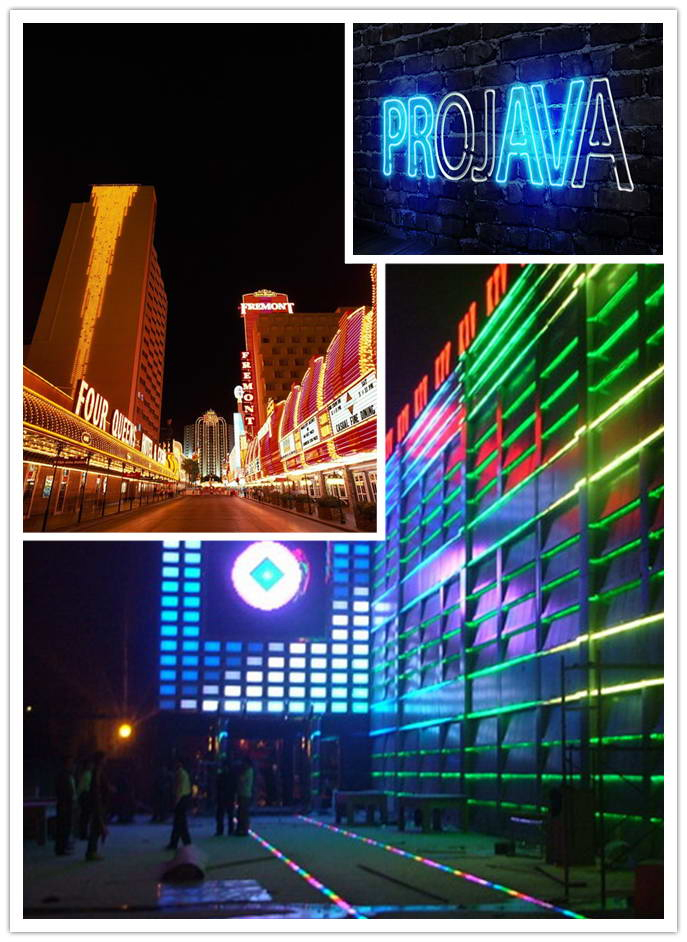

It is widely used in furniture lighting, showcase lighting to display jewelries, watches, artworks. Also, it's popular used in advertising light box, advertising signboard, car, shop, hotels, exhibitions, wimming pool and so on.
Product Feature
1. Aluminium PCB, available length 1m per PCS
2. Made of SMD 3528 or SMD 5050 LEDs from Taiwan EPIstar, with high brightness and long lifespan (up to 50 000hours)
3. High temperature resistant, aluminum PCB with good heat dissipation
4. Can be cut by every scissor unit
5. Working voltage: DC 12V, DC 24V
6. It is rigid, not flexible
7. Working temperature: -25 to +60 degree Celsius
8. Using environmental friendly material
9. Certification: CE & RoHS
| Series No | Color | Led Quantity (PCS/M) | CCT(k)/Wavelenth (nm) | PCB Size | VF(V) | Power (W/M) | Luminous Flux/M | Water-proof | Pack Standard |
| SMD5050 rigid strip (with white aluminum PCB, naked, Non-waterproof, without aluminum bar heat sink) | |||||||||
| WD-RS5050W30 | W/WW Y/G/R/B/RGB | 30/PC | 2000K-10000K | H1.2mm*W12mm*L495mm | DC12V/ DC24V | 7.2w | H:480LM N:360LM | NON | 495mm/PC;50g/pcs |
| WD-RS5050W60 | W/WW Y/G/R/B/RGB | 60/PC | 2000K-10000K | H1.0mm*W12mm*L990mm | DC12V/ DC24V | 14.4w | H:960LM N:720LM | NON | 1M/PC; 50g/pcs |
| WD-RS5050W72 | W/WW Y/G/R/B/RGB | 72/PC | 2000K-10000K | H1.0mm*W12mm*L990mm | DC12V/ DC24V | 19.44w | H:1152LM N:864LM | NON | 1M/PC; 50g/pcs |
| SMD3528 rigid strip (with white aluminum PCB, naked, Non-waterproof, without aluminum bar heat sink) | |||||||||
| WD-RS3528W72 (Double Row) | W/WW Y/G/R/B/RGB | 72/PC | 2000K-10000K | h1.2mm*L435mm*W12mm | DC12V/ DC24V | 5.76w | H:540LM N:360LM | NON | 435mm/pc; 65g/pcs |
| WD-RS3528W60 | W/WW Y/G/R/B/RGB | 60/PC | 2000K-10000K | h1.0mm*L990mm*W8mm | DC12V/ DC24V | 4.8W | H:450LM N:300LM | NON | 1M/PC; 35g/pcs |
| WD-RS3528W84 | W/WW Y/G/R/B/RGB | 84/PC | 2000K-10000K | h1.0mm*L990mm*W8mm | DC12V/ DC24V | 6.72W | H:630LM N:420LM | NON | 1M/PC; 35g/pcs |
