At Jinyuan optoelectronics, our high-quality outdoor led lighting products are the perfect lighting solution for all of your road lighting design projects.

Each of our outdoor led lighting fixtures is built to last a lifetime. If you want durable and reliable led lights for the outdoors that are made in Jinyuan using precision engineered led lighting components and designs that will always look great from the moment they are installed to years later.
JYL05L SERIES LED STREET LIGHT 240W
We already have CQC certificates; this leds made by 64pcs high performance SMD; Total lumen 35000lm. light efficiency 140-150lm/w; have same brightness as 305W 110lm/w led street lights in the market. Please contact us for more details. we are happy to share all information with you.
LED LED Street Lights 150W up to 150lm/W with 5 Years Warranty

LED LED Street Lights 150W up to 150lm/W with 5 Years Warranty

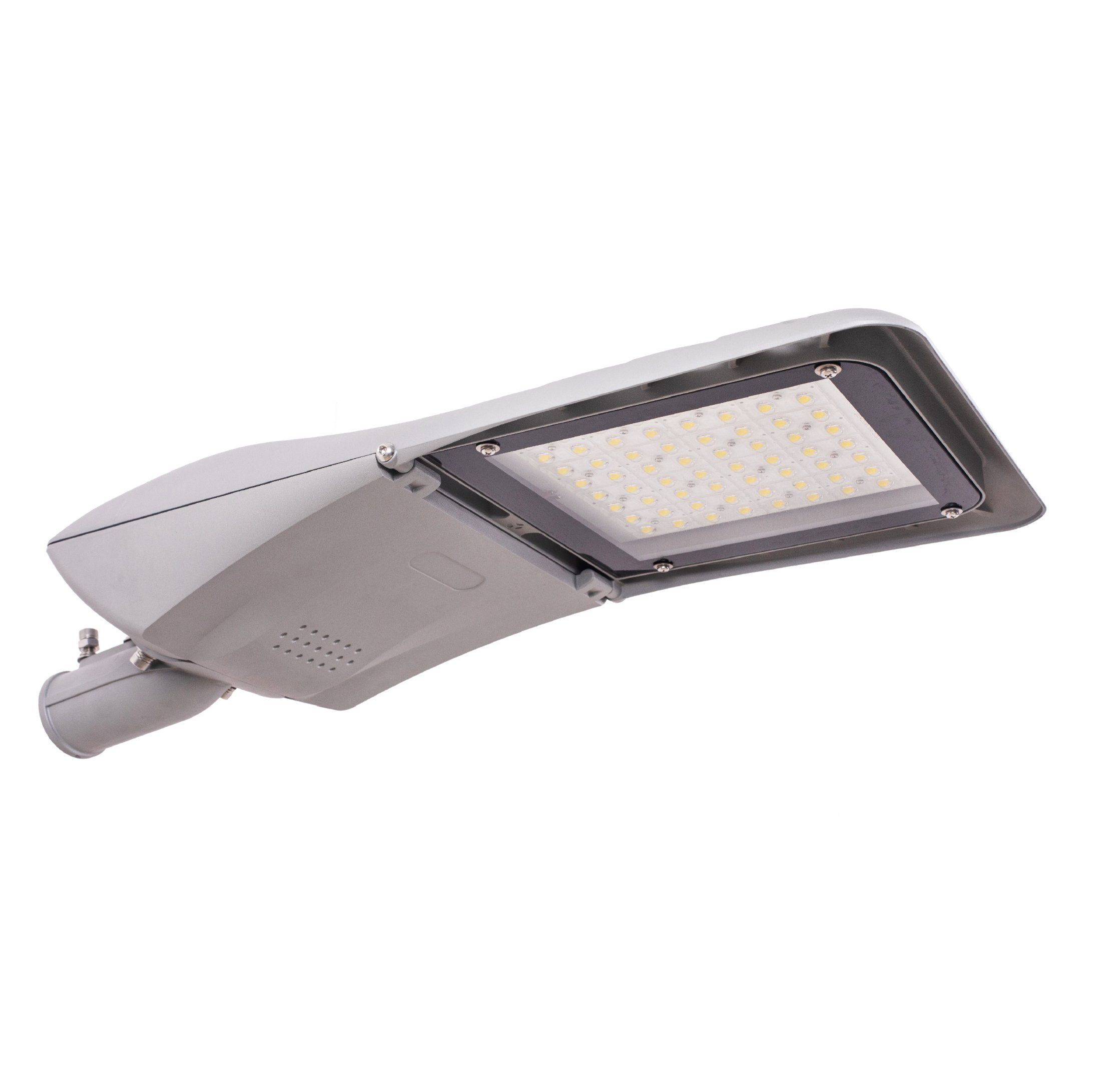

JYL05L series High light performance 240W led Street light
Jinyuan 05L series model can make 150-240W.
Product Description:

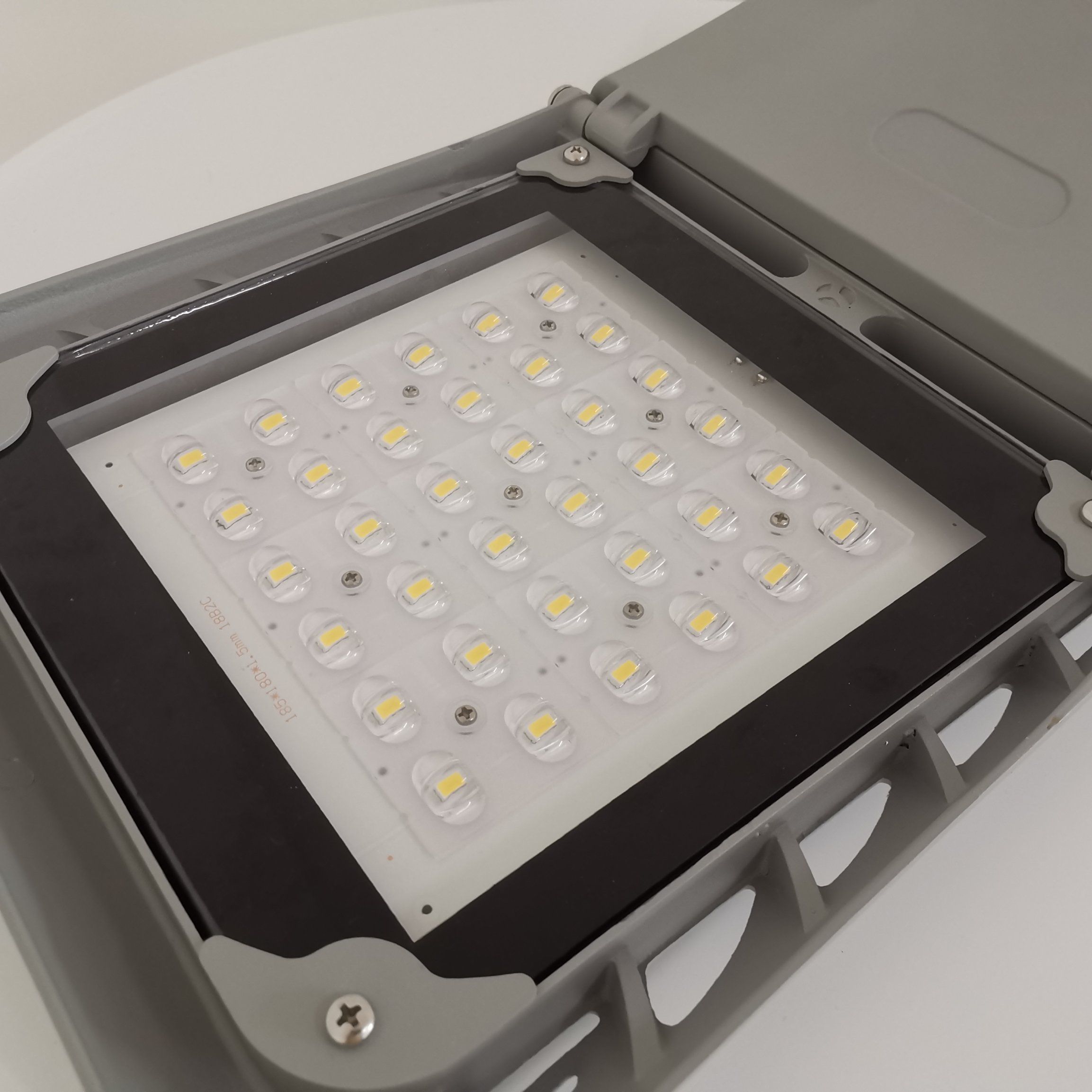

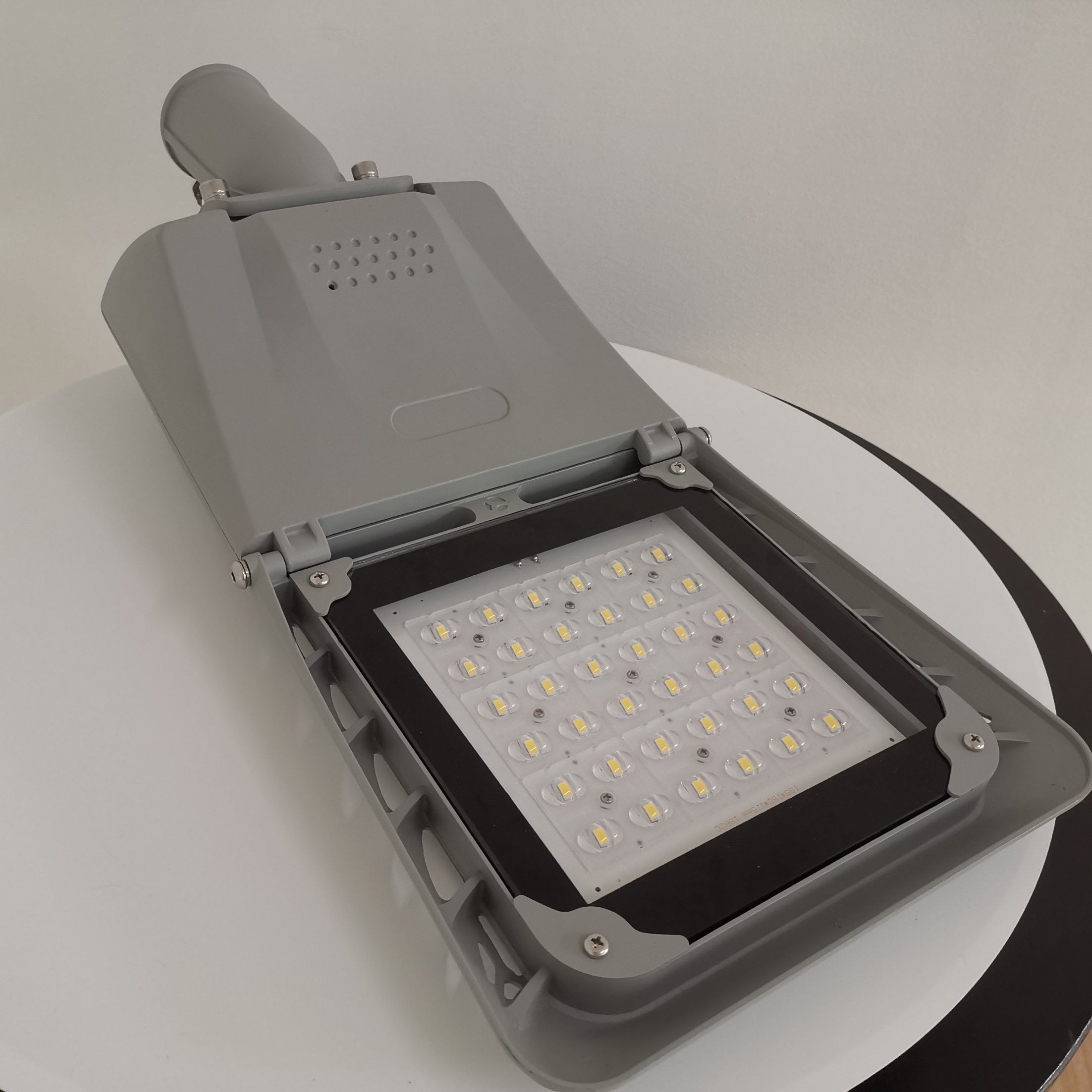

High performance design with multi-chips package 5050 LED source and exclusive Lens
Type II, III lens optional Uniform light distribution apply to different outdoor project
+/-10° angle adjustable and applicable different mounting arm
Photocell sensor and power-off protection socket design are available
Dimming and smart lighting system available upon request
Vibration resistant and surge protection 10KV/20KV

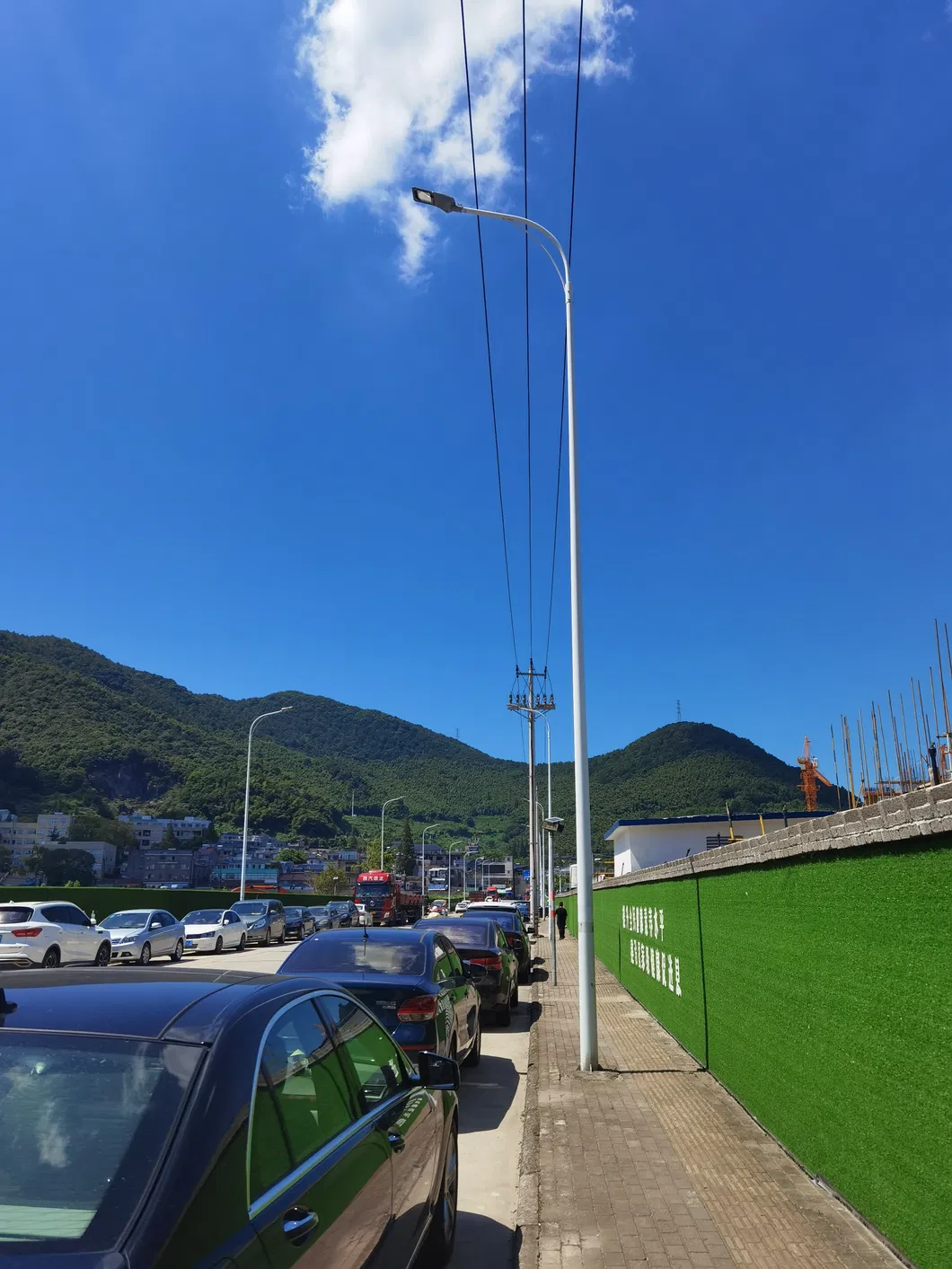

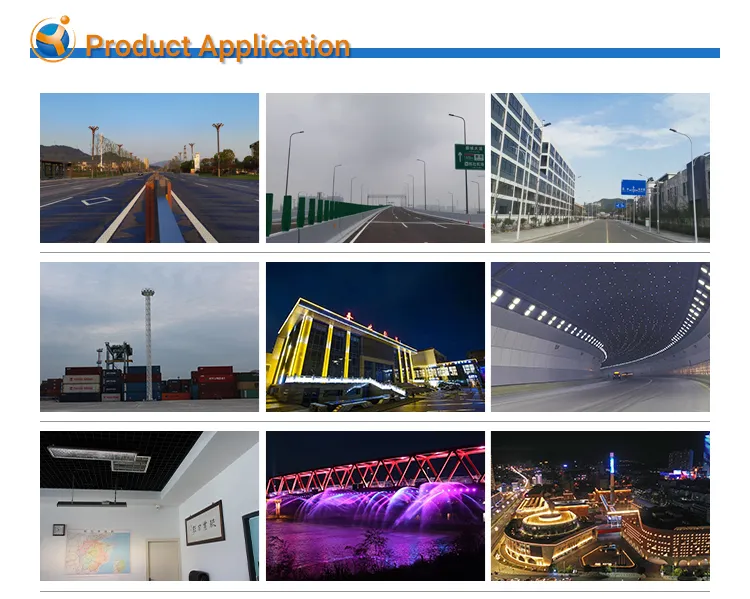

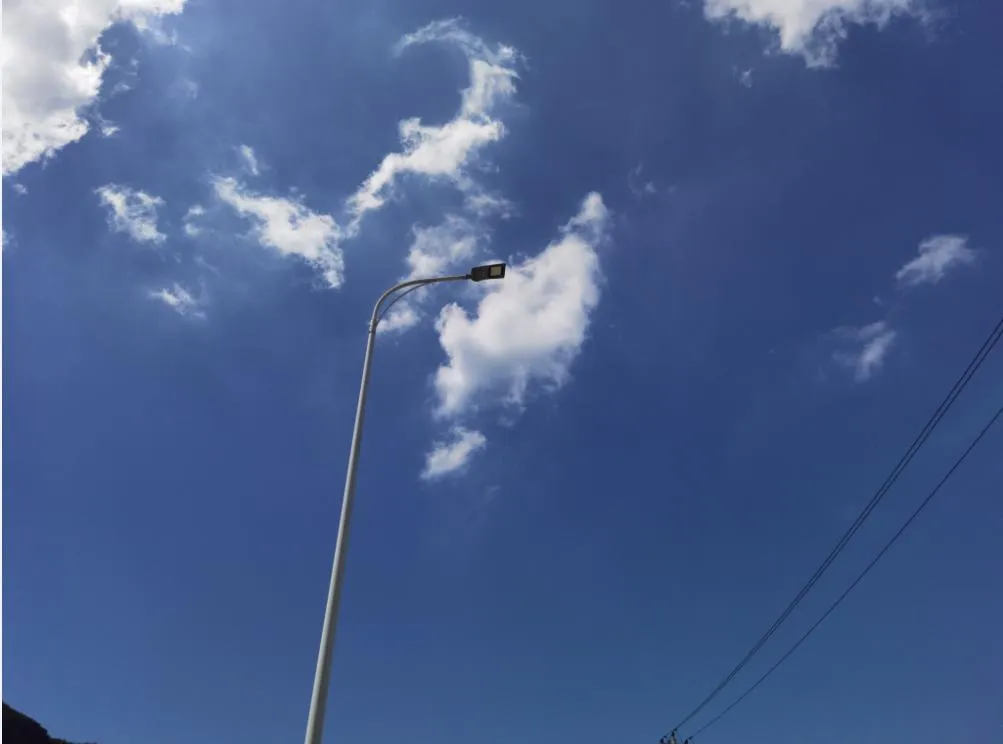

Apply to highways, city roads, parks, airports and outdoor venues

Products characteristics:

Classification	Project Name
Model	Product Name	LED Street Lamp
	Model	JYL05L
	Power	240W
	Size
	Working Temperature	-30~45ºC
	Control Mode	/
	Control Parameters	/
	Application	High-speed road,City road,Country road etc.
	Installation	Screw Fixed (304 Stainless steel Screw)
Standard	Standard	GB7000.1-2015
	Insulation Class	CLASS I
	IP Rating	IP65
	Product Certification	/
	Warranty	3/5years
Main Parts	Hosuing Material	Die-casting Aluminum
	Qty of Chips	64pcs
	Optical Material	Optical PC Lens
	Product Color	black white grey other:

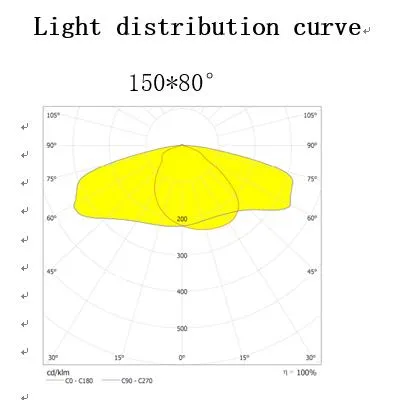

Optical Parameters	Beam Angle	70*150
	luminous efficiency	≥140LM/W
	Color Temperature (CCT)	3000K/4000K/5000K/5700K/6500K
	CRI	≥70
Light Source	Chip brand	optional
	Chip Model	5050
	LED Type	SMD
Electrical Equipment	Driver Brand	MOSO/Meanwell/Inentronics and some other brand
	Light Source Life	30000H
	Power Efficiency	85%
	Power Face	90%
	Input Voltage	AC90-305V
Package Parameter	Inner Size
	Carton Size
	Weight(KG)	/
	Annex
	Package System	carton wooden pallet other:carton

Please contact us for more details.

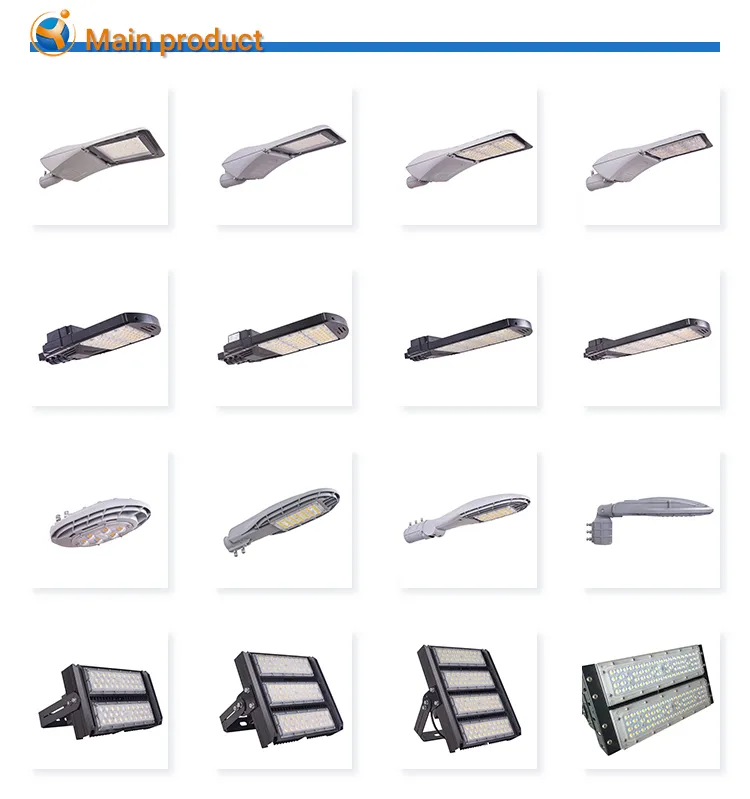

We welcome you to shop our superior line of led outdoor streetlights, flood lights, path lights, wall washer lights, garden lights which are all crafted for professional results. At Jinyuan optoelectronics, we have the perfect led lighting system for all of your outdoor lighting design applications.
