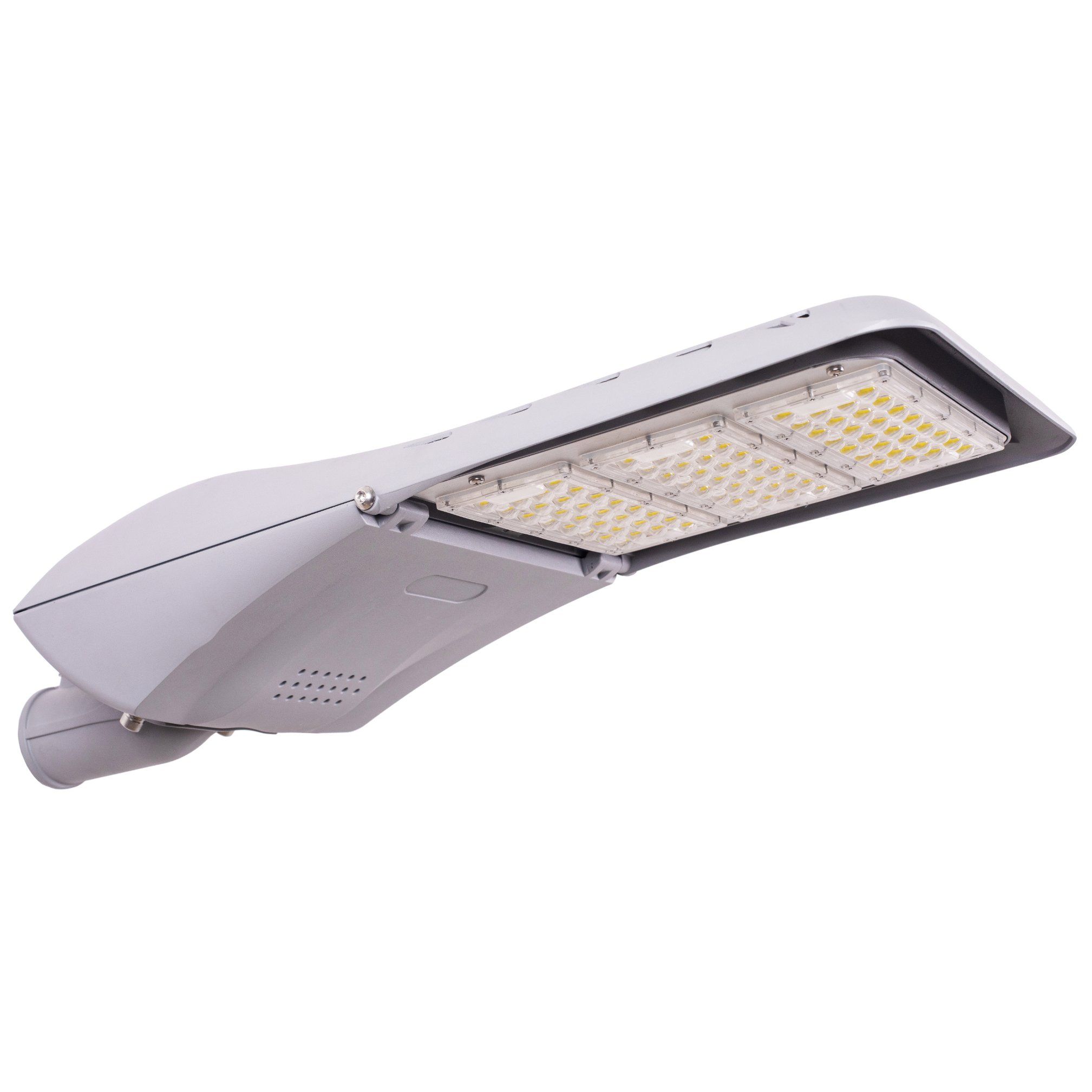

JY05LB 120W LED Street Light
Product DescriptionAt Jinyuan optoelectronics, our high-quality outdoor led lighting products are the perfect lighting solution for all of your road lighting design projects. Each of our outdoor led lighting fixtures is built to last a lifetime. If you want durable and reliable led lights for the o......
Send Inquiry
Product Description
Product Description
At Jinyuan optoelectronics, our high-quality outdoor led lighting products are the perfect lighting solution for all of your road lighting design projects.
Each of our outdoor led lighting fixtures is built to last a lifetime. If you want durable and reliable led lights for the outdoors that are made in Jinyuan using precision engineered led lighting components and designs that will always look great from the moment they are installed to years later.

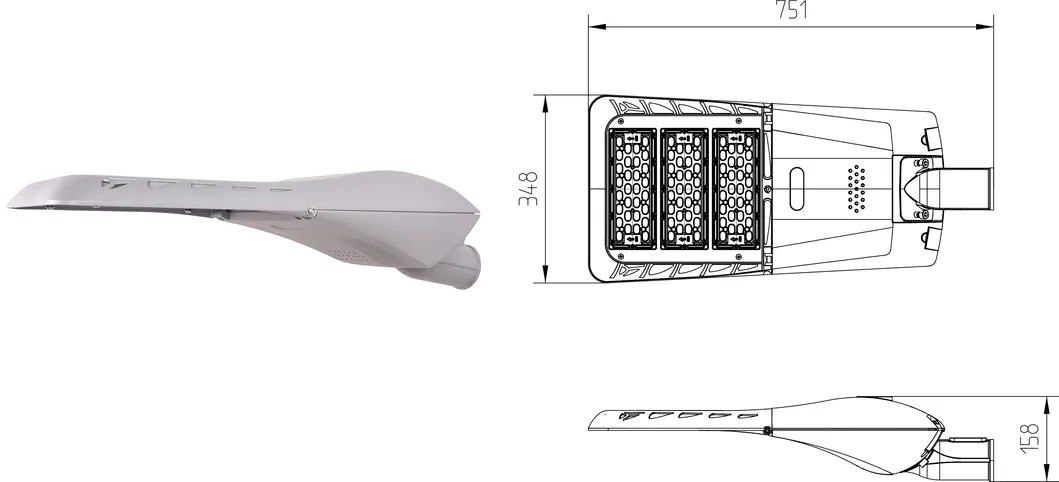

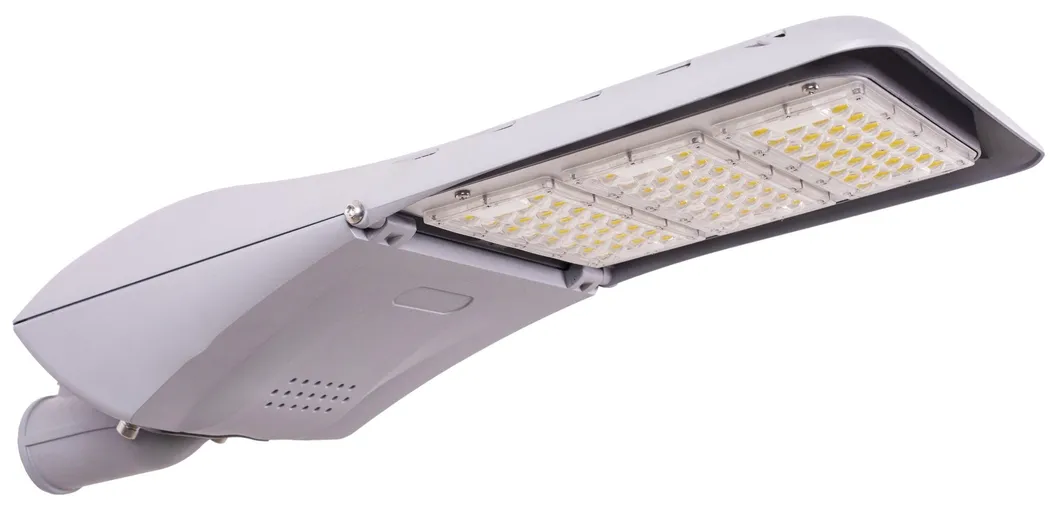

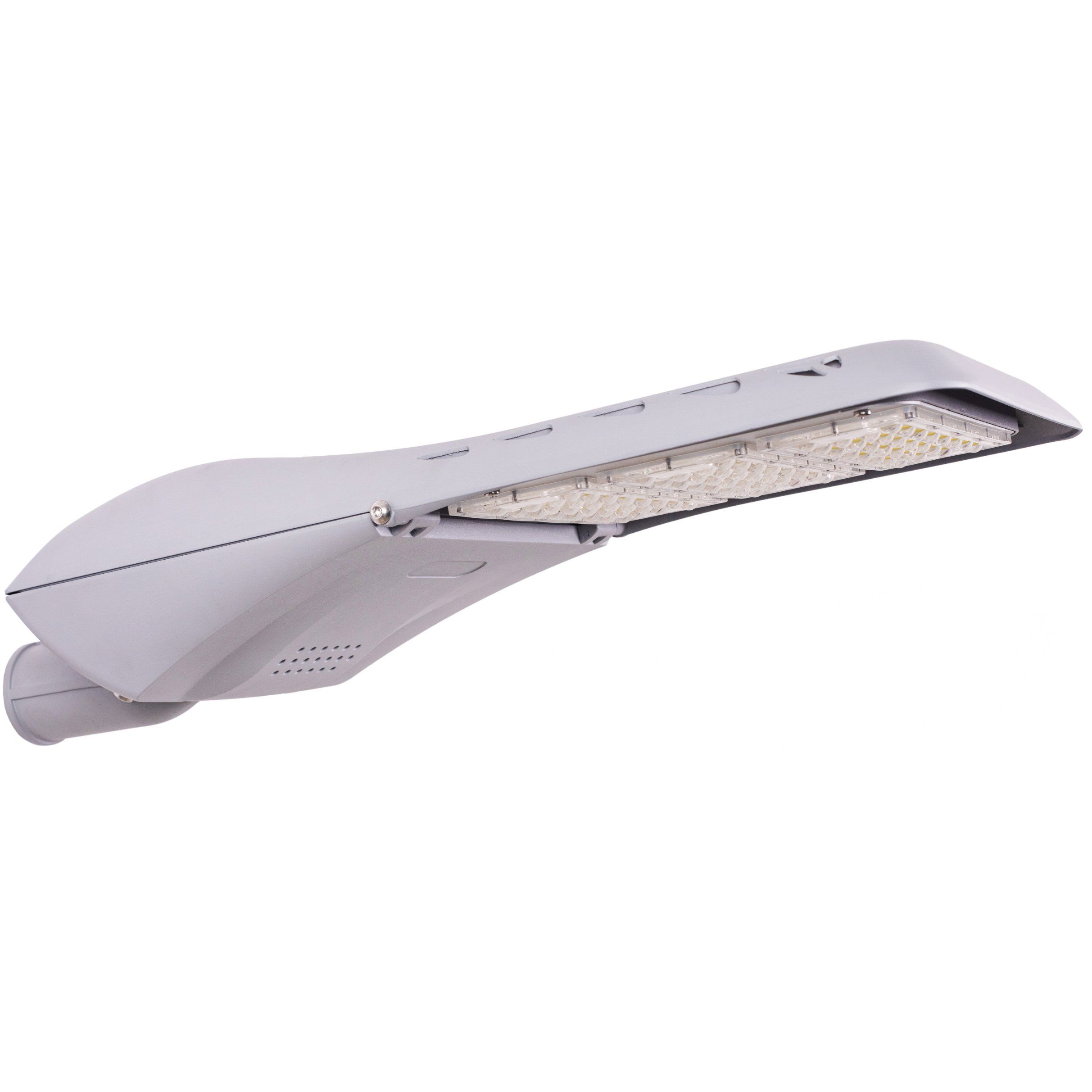

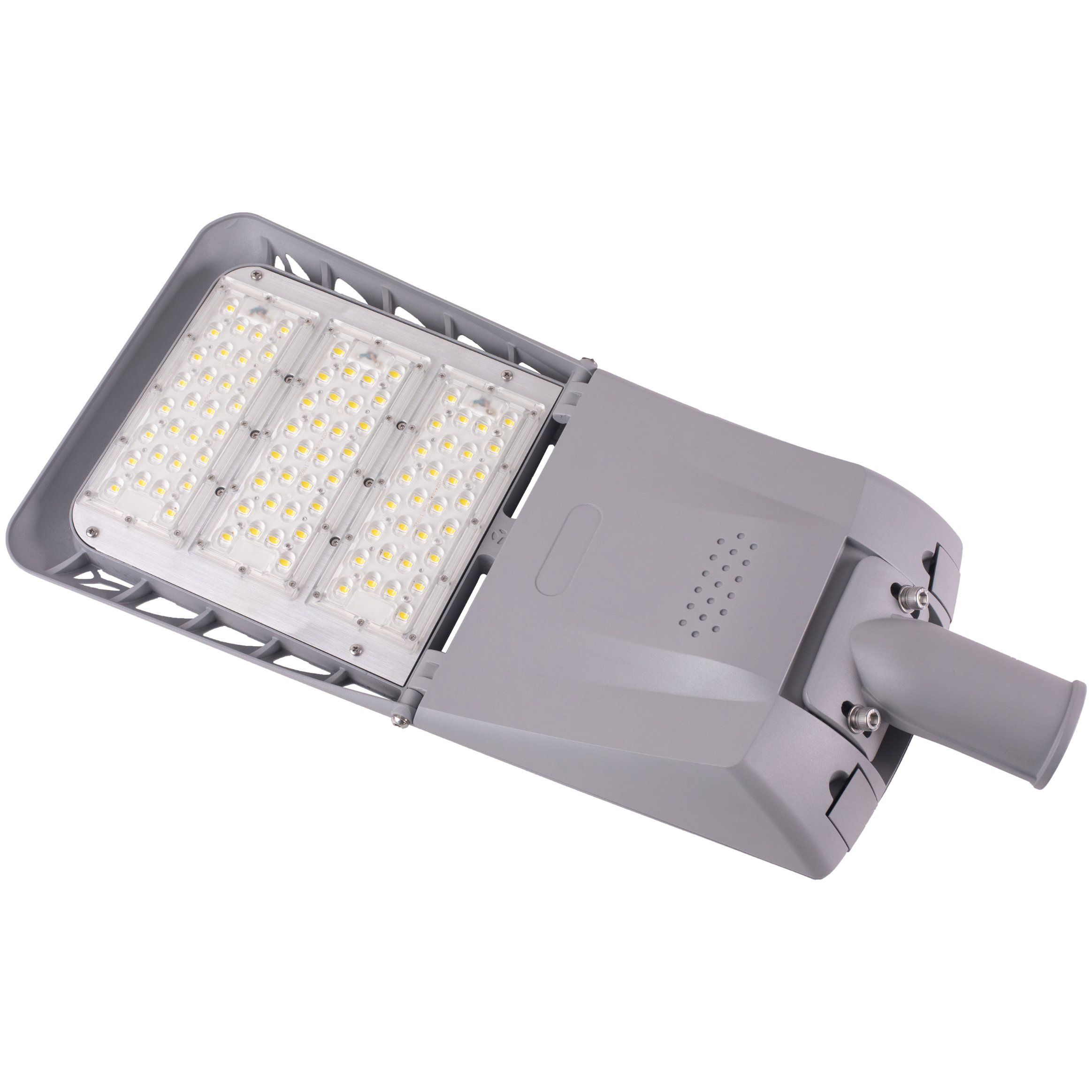

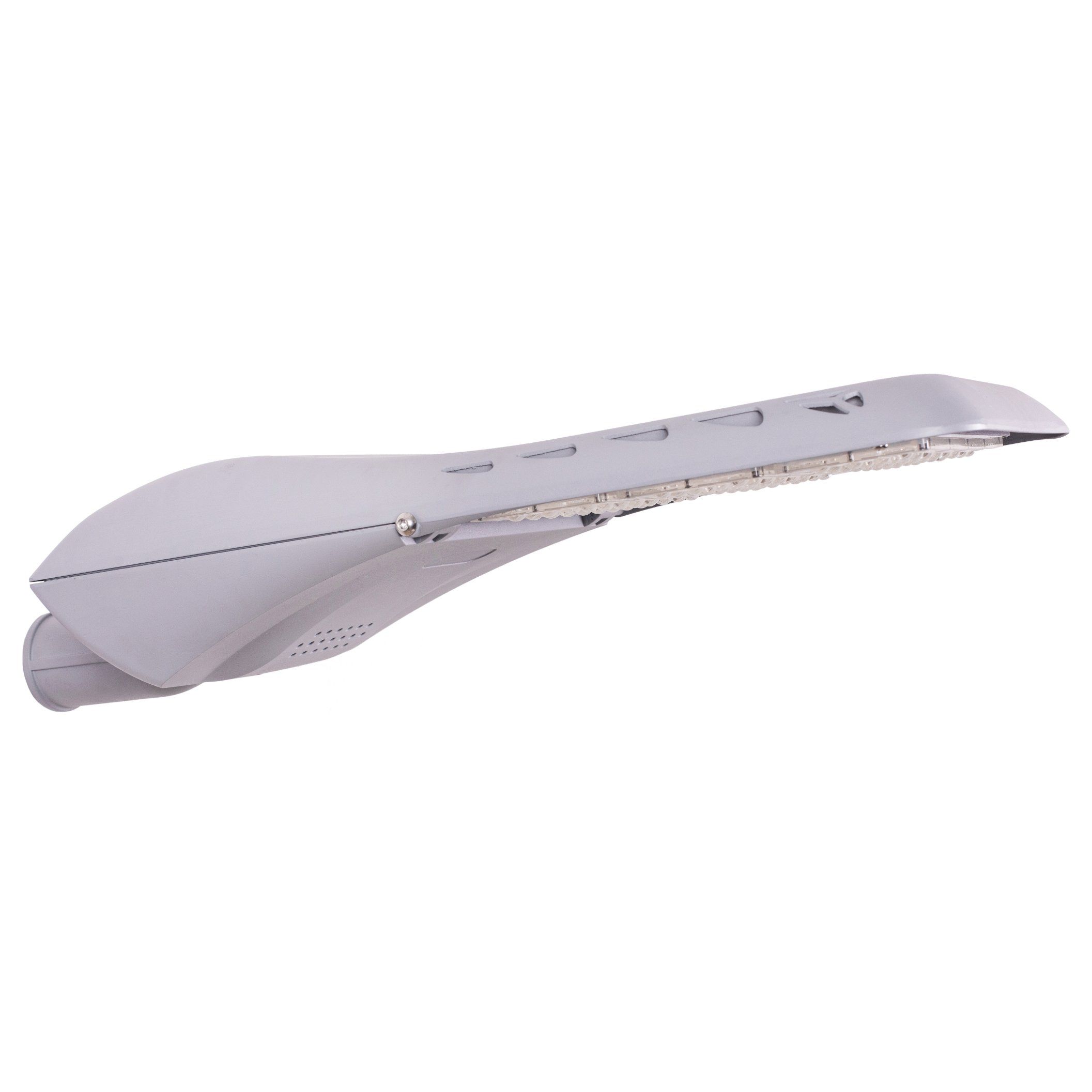

Detailed Photos
JYL05L SERIES LED STREET LIGHT FROM 120W to 240W
Type II,III lens optional Uniform light distribution apply to different ourdoor project ±10° angle adjustable and applicable different mounting arm
Photocell sensor and power-off protection socket design are available
Dimming and smart lighting system available upon request
Vibration resistant and surge protection 10KV/20KV

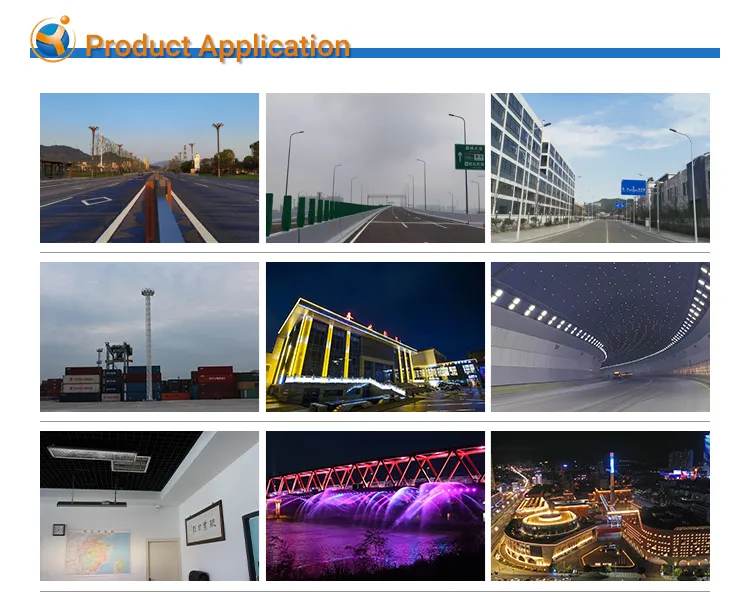

Apply to highways, city roads, parks, airports and outdoor venues
Input | 90-305V |
Input Power | 120-240W |
LED chips | Bridgelux |
Driver | Meanwell XLG |
Light efficiency | 150-170lm/w |
CRI | >80Ra, PF>0.95 |
LED quanlity | 90 PCS |
Color temperature | 2700-6500K can be customized |
Bean angle | 80*150°/70*150° |
IP rating | IP66 |
Life span | 50000h |
Housing | aluminium+3 LED modules |
10KV lighting protect device | 20KV |
Warranty | 5years |

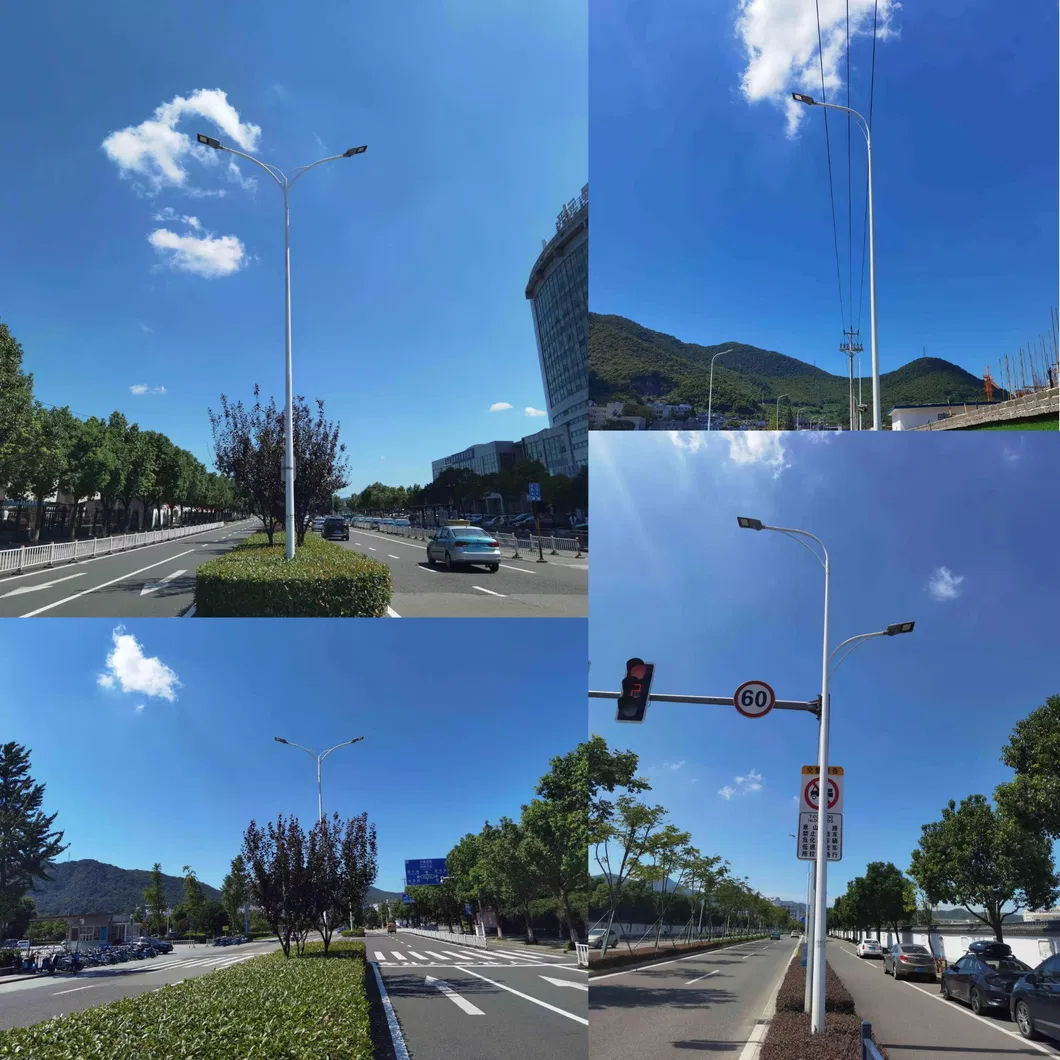

Real Case Photos
